U series AutomaticExtrusion Blow Molding Machine

U Series

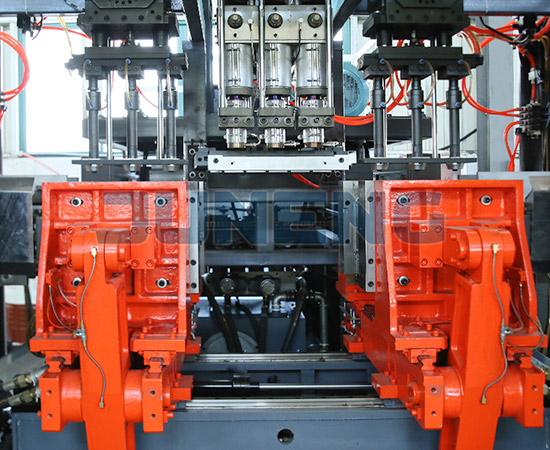

One of the biggest features of our U series is the use of toggle clamping mechanism. The toggle clamping mechanism brings a larger clamping force, ensuring that the clamping force is evenly distributed. The lifting platform is equipped to make the easier mold changeover. With a self-designed die head raising device, the problem of die head shaking has been solved. U series allows automatic deflashing when producing large products of 20L-30L.

Technical Detail

Model NO./Type	Unit	JN-70U	J-70U-DT	JN-70U-TH
Max Volume	L	5	5	5
Dry Cycle	pc/h	700
Screw Diameter	mm	70	70+40+25	70+40+30
Screw Aspect Ratio/Screw L/D Ratio	L/D	24-26	25	25
Screw Motor Power	Kw	22	22+7.5 customized according to the actual situation+1.1	22
Screw Heating Power	Kw	4~4.5	4~4.5	4~4.5
Screw Heating Section/Screw Heating Zone	Zone	3	3+3+1	3
HDPE Extrusion Out put	Kg/hr	70-85	70~85	70~85
Oil Pump Motor Power	Kw	15	15	15
Clamping Force	KN	100	68	68
Opening And Closing Die Stroke	mm	200-500	200-500	200-500
Mold Dimensions	mm	360*440	360*440	360*440
Move Mould Stroke	mm	450/480	420/480	420/480
Maximum Diameter Of Die	mm	160	according to the die head size
Heating Power Of Die Head	Kw	14	3.5~4.3	3.5~4.3
Blow Air Pressure	Mpa	0.6-0.8	0.6~0.8	0.6~0.8
Gas Consumption/Air Volume	Min	0.6	0.6	0.8
Cooling Water Pressure	Mpa	0.3	0.4	0.4
Water Consumption	L/min	60	65	60
Weight Of Machine	Ton	6	7	5.2
Size Of Machine	m(LxWxH)	3.72.22.2	3.5×2.2*2.2	3.5×2.2×2.2
